Multiple Friction Pendulum System (MFPS)
Component Test of a Prototype MFPSShaking Table Tests of a Structure with MFPS Base Isolators

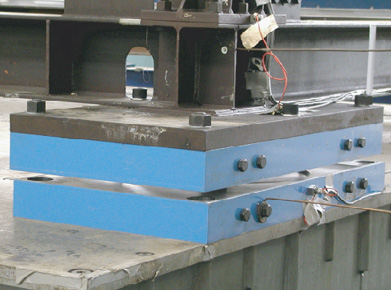

Shaking Table Tests of a Structure with MFPS Base Isolators

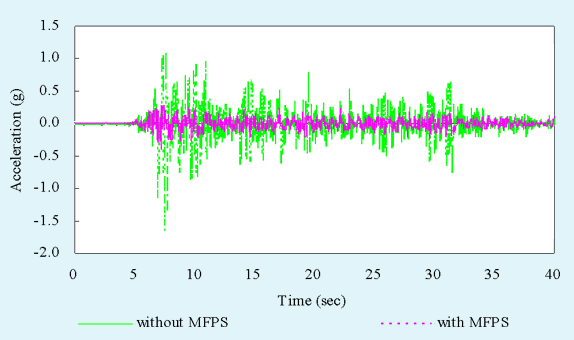

Comparison of the Roof Acceleration of the Bare Structure and the MFPS Base Isolated Structure during El Centro Earthquake (PGA=X0.743g+Y0.486g+Z0.316g)

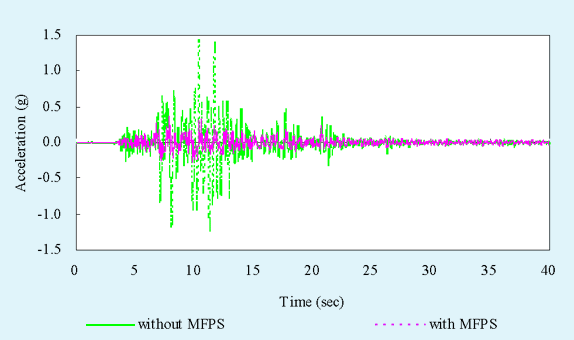

Comparison of the Roof Acceleration of the Bare Structure and the MFPS Base Isolated Structure during Kobe Earthquake (PGA=X0.895g+Y0.483g+Z0.291g)

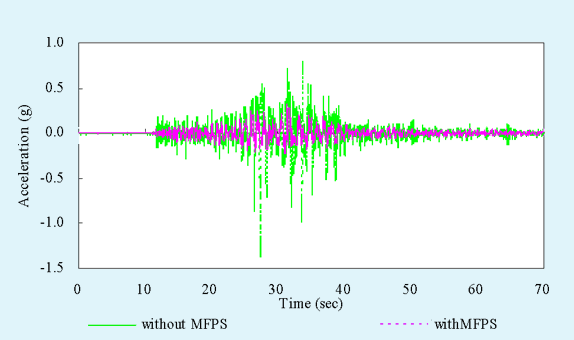

Comparison of the Roof Acceleration of the Bare Structure and the MFPS Base Isolated Structure during 1999 Chi-Chi Earthquake (TCU084, PGA=X0.675g+Y0.289g+Z0.217g)

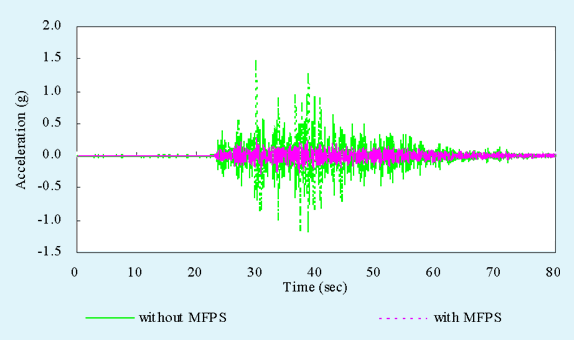

Comparison of the Roof Acceleration of the Bare Structure and the MFPS Base Isolated Structure during 1999 Chi-Chi Earthquake (TCU129, PGA=X0.853g+Y0.514g+Z0.311g)
