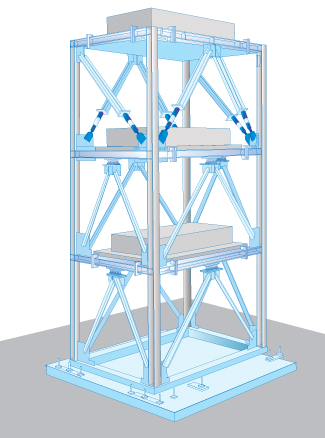

  Shaking
Table Tests of a Structure with Combined Displacement
-Dependent and Velocity-Dependent Devices |
Shaking
Table Tests of a Structure with Combined Displacement
-Dependent and
Velocity-Dependent Devices |
|
 |
|
 |
|

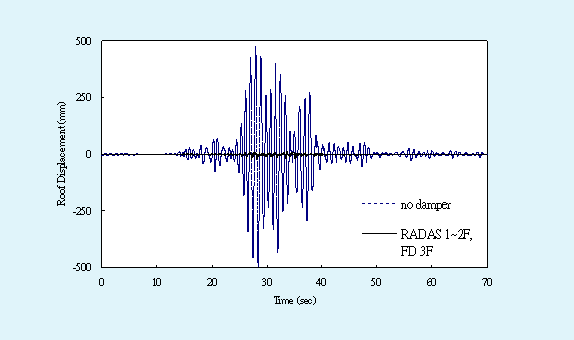

| Comparison of the roof displacement in
X-dir. of a bare structure with that
of a structure with combined displacement
and velocity dependent devices during
the 1999 Chi-Chi earthquake(TCU084,PGA=X
0.5g + Y 0.214g + Z 0.158g) |
|
|
|
 |
|
 |
|
|
|
|
|
|

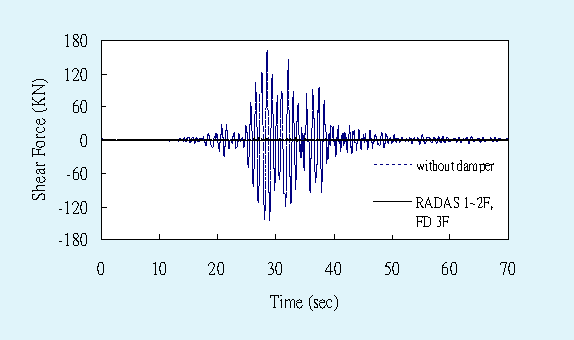

| Comparison
of the column shear force at 1st Floor
in X-dir. of a bare structure with
that of a structure with combined displacement
and velocity dependent devices during
the 1999 Chi-Chi earthquake (TCU084,PGA=X
0.5g + Y 0.214g + Z 0.158g) |
|
|
|
|
|
|
|
|
|
|
|
|

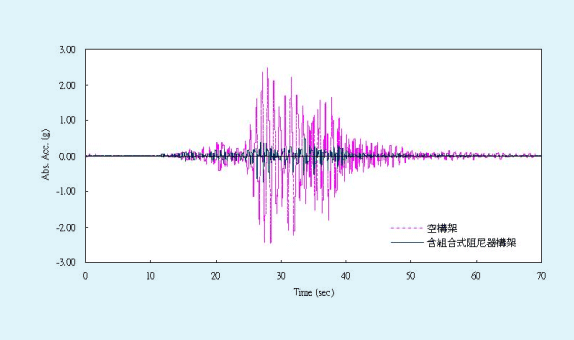

| Comparison
of the roof acceleration in X-dir.
of a bare structure with that of a
structure with combined displacement
and velocity dependent devices during
the 1999 Chi-Chi earthquake(TCU084,PGA=X
0.5g + Y 0.214g + Z 0.158g) |
|
|
|
|
|
|
|
|
|
|
|
|

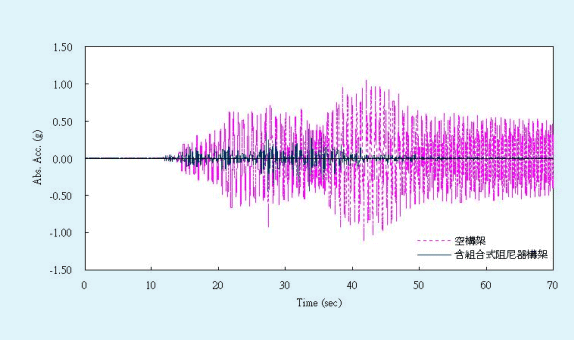

| Comparison
of the roof acceleration in Y-dir.
of a bare structure with that of a
structure with combined displacement
and velocity dependent devices during
the 1999 Chi-Chi earthquake(TCU084,PGA=X
0.5g + Y 0.214g + Z 0.158g) |
|
|
|
|
|
|
|
|
