Reinforced Added Damping and Stiffness (X-RADAS Damper)
Component Test of a Prototype X-RADASShaking Table Tests of a Structure with X-RADAS Dampers

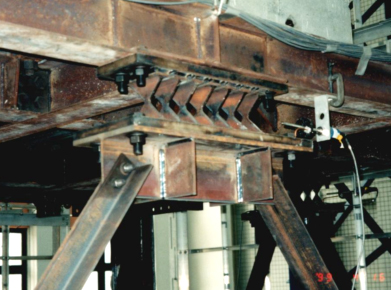

Shaking Table Tests of a Structure with X-RADAS Dampers

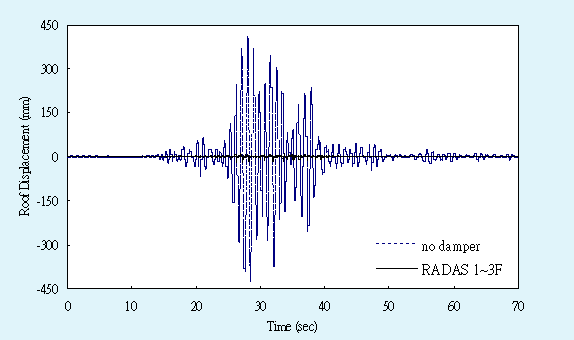

Comparison of the roof displacement in X-dir. of a bare structure with that of a structure with X-RADAS dampers during the 1999 Chi-Chi earthquake(TCU084,PGA=X 0.5g + Y 0.214g + Z 0.158g)

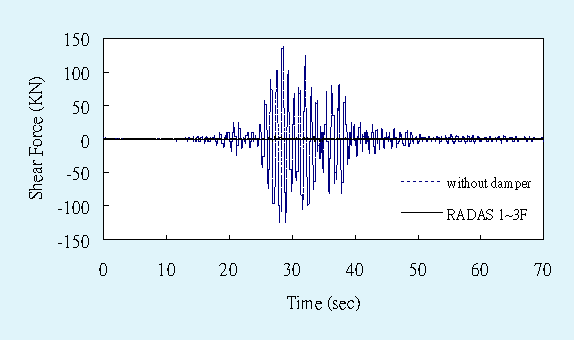

Comparison of the column shear force at 1st Floor in X-dir. of a bare structure with that of a structure with X-RADAS dampers during the 1999 Chi-Chi earthquake(TCU084,PGA=X 0.5g + Y 0.214g + Z 0.158g)
Comparison of the roof acceleration in X-dir. of a bare structure with that of a structure with X-RADAS dampers during the 1999 Chi-Chi earthquake(TCU084,PGA=X 0.5g + Y 0.214g + Z 0.158g)
Comparison of the roof acceleration in Y-dir. of a bare structure with that of a structure with X-RADAS dampers during the 1995 Kobe earthquake (PGA=X 0.5g + Y 0.377g + Z 0.203g)
